BMH05104-Eight-electrode Body Fat Measurement Module
Description
The BMH05104 is an eight-electrode body fat measurement module designed by Best Health Inc. It can be used to measure both weight and body fat.
The module includes a body fat measurement MCU, and a 24-bit A/D converter that can output weight and impedance values. It is suitable for applications of eight-electrode and four-electrode AC body fat scales and body composition analyzers.
Product information
Dimension：35 X 26 X 2 mm
Net Weight：4.3g
Purchasing
Previous
Next
Product Details
Features
- Operating voltage: 2.8V to 5.5V
- Operating current: 6uA (sleep mode) / 2mA (standby mode)
- Operating temperature: -10℃ to 60℃
- Output weight and impedance values directly, not need to convert from the AD values.
- Interface: UART,SPI, I2C
- Provides 11 modes for body fat measurement

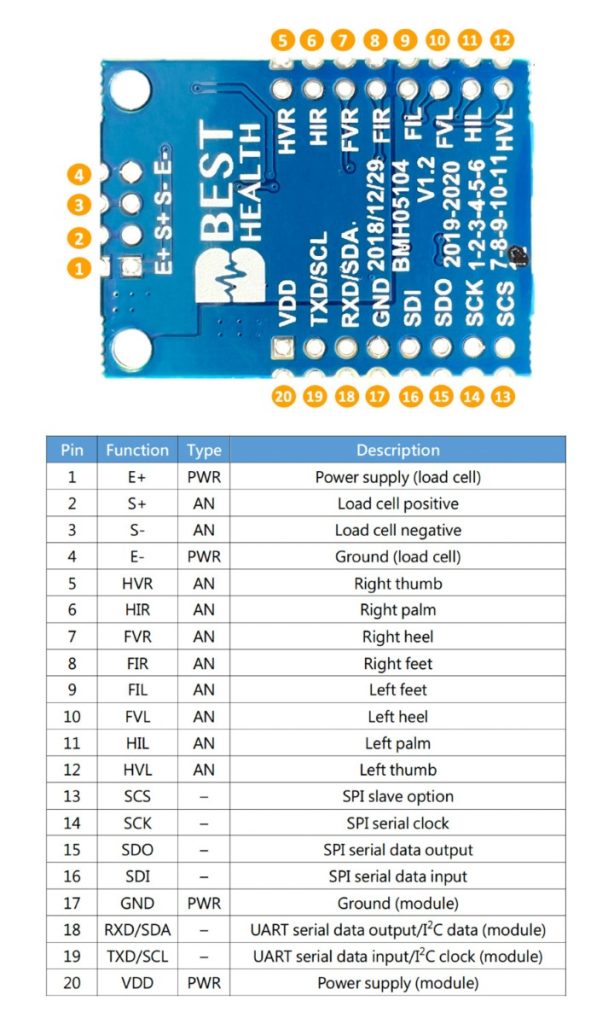

Pin Description
Resource
- DataSheet
- For technical support, please contact Besthealth，email: service@e-besthealth.com
