BMH05106-Eight-electrode body composition module
Description
The BMH05106 has a built-in Holtek 8-bit impedance phase angle measurement MCU, and includes two multi-channel with 24-bit Delta Sigma A/D converters to measure weight and body impedance and output the body composition calculation results. It provides the UART interface to communicate with external MCU.
It is suitable for applications of AC body fat scales, body composition analyzers, etc.
Product information
Dimension：72 X 50 X 7 mm
Net Weight : 14.6g
Packing List：Eight-electrode body composition module BMH05106 x 1
Purchasing
Previous
Next
Product Details
Features
- Operating voltage: 5V to 6V
- Weight and body impedance can be measured at the same time
- Support full-bridge and half-bridge load cells
- Output weight and impedance values directly without conversion
- Output body composition calculation results
- UART interface
- Support multiple baud rates

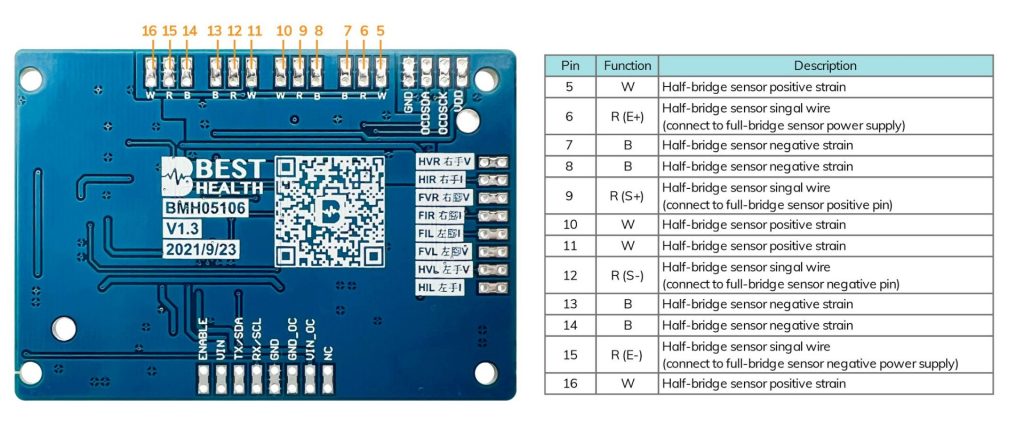

Load Cell Pins Description
Resource
- DataSheet
- For technical support, please contact Besthealth，email: service@e-besthealth.com
