BMH06203-31-Infrared Thermometer Module
Description
The BMH06203 series is an infrared thermometer module designed for non-contact temperature measurement. It uses a Holtek 24-bit ADC MCU to measure the thermopile voltage, calculate the temperature and output the result through I2C interface, PWM pules, or I/O.

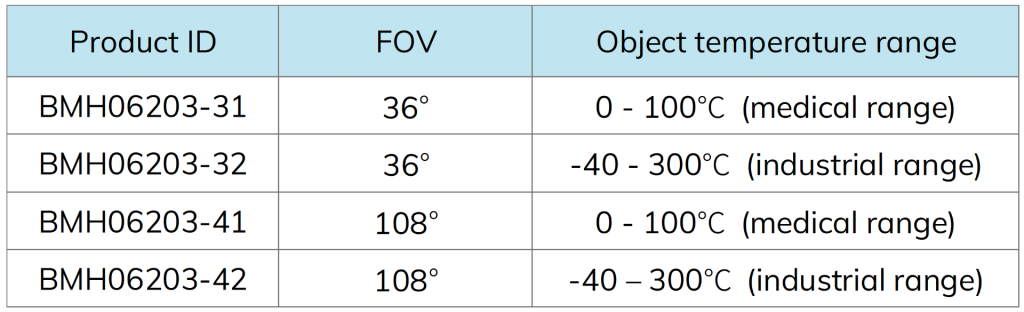

According to the sensor’s field of view (FOV) and the object’s temperature range, the BMH06203 series includes several products :
All the products are factory-calibrated. Through the I2C interface, the module’s built-in EEPROM and RAM can be read/written to set various parameters and read the temperatures. The module is highly flexible in use.
Product information
BMH06203-3X: Dimension ：19 x 11 x 11(mm) Net weight：2.7g（not includes cable）
BMH06203-4X: Dimension ：18 x 10 x 9(mm) Net weight：3.5g（not includes cable）
Cable：102 X 6 mm
Purchasing
Product Details
Features
- Operating voltage : 2.6V – 5.5V
- Measure the ambient temperature, object temperature, body temperature.
- Measurement resolution of 0.1℃
- Sleep mode for power saving, current consumption < 3uA (3V)
- Output mode : I2C, PWM, IO
- It takes 1 second from power-on to output the first measurement data
- Customizable PWM output for continuous reading
- Factory calibration
Pin description
Resource
- DataSheet
- For technical support, please contact Besthealth，email: service@e-besthealth.com
FAQ
Question 1
What is the best distance of measurement?
Answer
The distance depends on the object’s superficial measure. The larger the object’s superficial measure, the farther the distance is. Therefore, there is no best distance to measurement. Please refer to the below picture.
Question 2
Can it measure multi-temperature from an object at the same time?
Answer
No, it can only measure a temperature of the object each time.
